`rath.session`#

Session state, chunk transcript, session loop, lazy materialization, context compression, and lineage graph.

Source#

Module	Source
`rath.session.session`	`src/rath/session/session.py`
`rath.session.chunk`	`src/rath/session/chunk.py`
`rath.session.loop`	`src/rath/session/loop.py`
`rath.session.compress`	`src/rath/session/compress.py`
`rath.session.primitives`	`src/rath/session/primitives.py`
`rath.session.graph`	`src/rath/session/graph/`
`rath.session.manager`	`src/rath/session/manager.py`
`rath.session.persistence`	`src/rath/session/persistence/`

Public contract#

`Session`#

Field	Type	Meaning
`chunk_table`	`ChunkTable`	Chronological chunk rows.
`id`	`UUID`	Session identity.
`sandbox`	`BackendSandbox` \| `None`	Currently open sandbox handle.
`sandbox_backend`	`str` \| `None`	Backend name used for lazy open.
`parent_session_ids`	`tuple[UUID, ...]`	Lineage parents.
`lineage_operator`	`str`	Operation that produced the current session.
`lineage_kind`	`LineageKind`	Lineage operation kind.
`cumulative_usage`	`RathLLMTokenUsage` \| `None`	Running token usage accumulated by loop/compress and summed by `merge()`; reading it may synchronize a lazy output session.

Method	Returns	Behavior
`Session.from_agent_prompt(prompt)`	`Session`	Creates a single `system` chunk.
`Session.from_user_message(text)`	`Session`	Creates a single `user` chunk.
`session.to(backend="local", spec=None)`	`Session`	Sets the sandbox target and releases the current handle (refcount − 1).
`session.bind_sandbox(sandbox)`	`Session`	Releases the current handle and takes a reference on `sandbox` (refcount + 1).
`session.require_sandbox()`	`BackendSandbox`	Returns or lazily opens the current sandbox; acquires one reference on first open.
`session.close_sandbox()`	`Session`	Drops this session’s reference; the backend closes when the count reaches zero.
`session.fork()`	`Session`	Copies chunk rows and shares the sandbox reference (refcount + 1); parent points to the source session.
`session.detach()`	`Session`	Copies chunk rows and shares the sandbox reference; creates a new lineage root.
`session.merge(other)`	`Session`	Concatenates `self.rows + other.rows`, keeps `self.sandbox`, ignores `other.sandbox`, and sums `cumulative_usage`. It only rejects conflicting unbound backend targets.

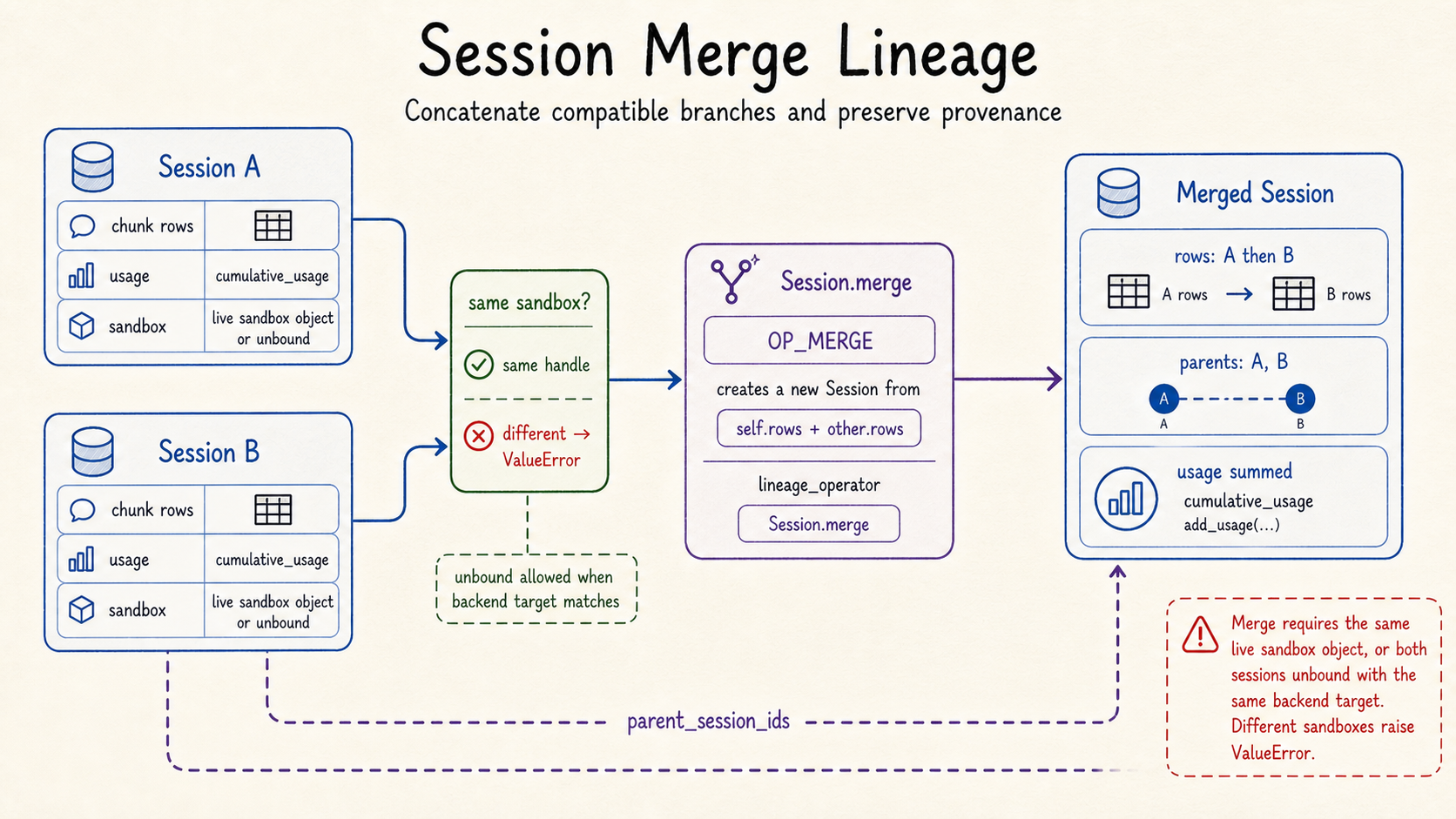

Session merge lineage — `Session.merge(...)` joins compatible branches, preserves parent lineage, and keeps sandbox ownership explicit.#

Chunk helpers#

Function	Returns	Purpose
`user_text_chunk(text)`	`ChunkRow`	Creates a user row.
`system_text_chunk(text)`	`ChunkRow`	Creates a system row.
`assistant_turn_chunk(tool_calls, content=None)`	`ChunkRow`	Creates an assistant row.
`tool_feedback_chunk(tool_call_id, name, body)`	`ChunkRow`	Creates a tool result row.
`chunk_table_to_messages(tab)`	`tuple[RathLLMMessage, ...]`	Converts to chat completion messages.

Loop#

run_session_loop(
    user_session: Session,
    agent_session: Session,
    *,
    agent_provider: Provider,
    tools: list[FlowToolCall] | None = None,
    executor: SessionLoopExecutor | None = None,
    max_tool_rounds: int = 16,
    on_event: Callable[[RathLLMStreamDelta], None] | None = None,
    persist: bool = False,
    persist_path: Path | None = None,
    sandbox_handle_id: str | None = None,
) -> Session

Parameter	Description
`user_session`	User-side transcript and sandbox placement.
`agent_session`	Agent/system transcript used in request assembly.
`agent_provider`	Model and request parameters.
`tools`	Additional `FlowToolCall` instances.
`executor`	Replacement point for completion and tool dispatch.
`max_tool_rounds`	Maximum number of tool-call rounds.
`on_event`	When set, each streamed `RathLLMStreamDelta` is forwarded here; the resolved chat client must satisfy `StreamingChatClient`.
`persist` / `persist_path`	When truthy, every appended chunk is written to `.openrath/sessions/<out.id>.jsonl` (or the explicit path).
`sandbox_handle_id`	Optional sandbox identifier persisted in the JSONL header for later reattach.

The output session shares the input user session’s sandbox reference (refcount + 1). The returned Session starts with the user rows, then appends assistant rows and tool_result rows. The output session lineage parents are the user session and agent session.

executor and on_event are mutually exclusive unless the caller manually wraps a streaming client in StreamingExecutor. When on_event is provided, the resolved client must implement complete_stream(req); the built-in OpenAI-compatible and Anthropic clients both support this path in v1.2.

The public API remains synchronous. Internally, v1.2 can return a lazy output session while tool/model work continues on the private async runtime. Session identity, lineage metadata, and sandbox ownership are available immediately; reading chunk_table, reading cumulative_usage, or calling synchronize() waits for pending work.

Compression#

run_session_compress(
    user_session: Session,
    agent_session: Session,
    *,
    agent_provider: Provider,
    executor: SessionLoopExecutor | None = None,
    compress_instruction: str | None = None,
    register_sessions: bool = True,
    on_event: Callable[[RathLLMStreamDelta], None] | None = None,
    persist: bool = False,
    persist_path: Path | None = None,
    sandbox_handle_id: str | None = None,
) -> Session

Returns a user-only session. The compression request uses tools=None and tool_choice="none". A model response with tool calls raises RuntimeError. on_event / persist behavior matches run_session_loop.

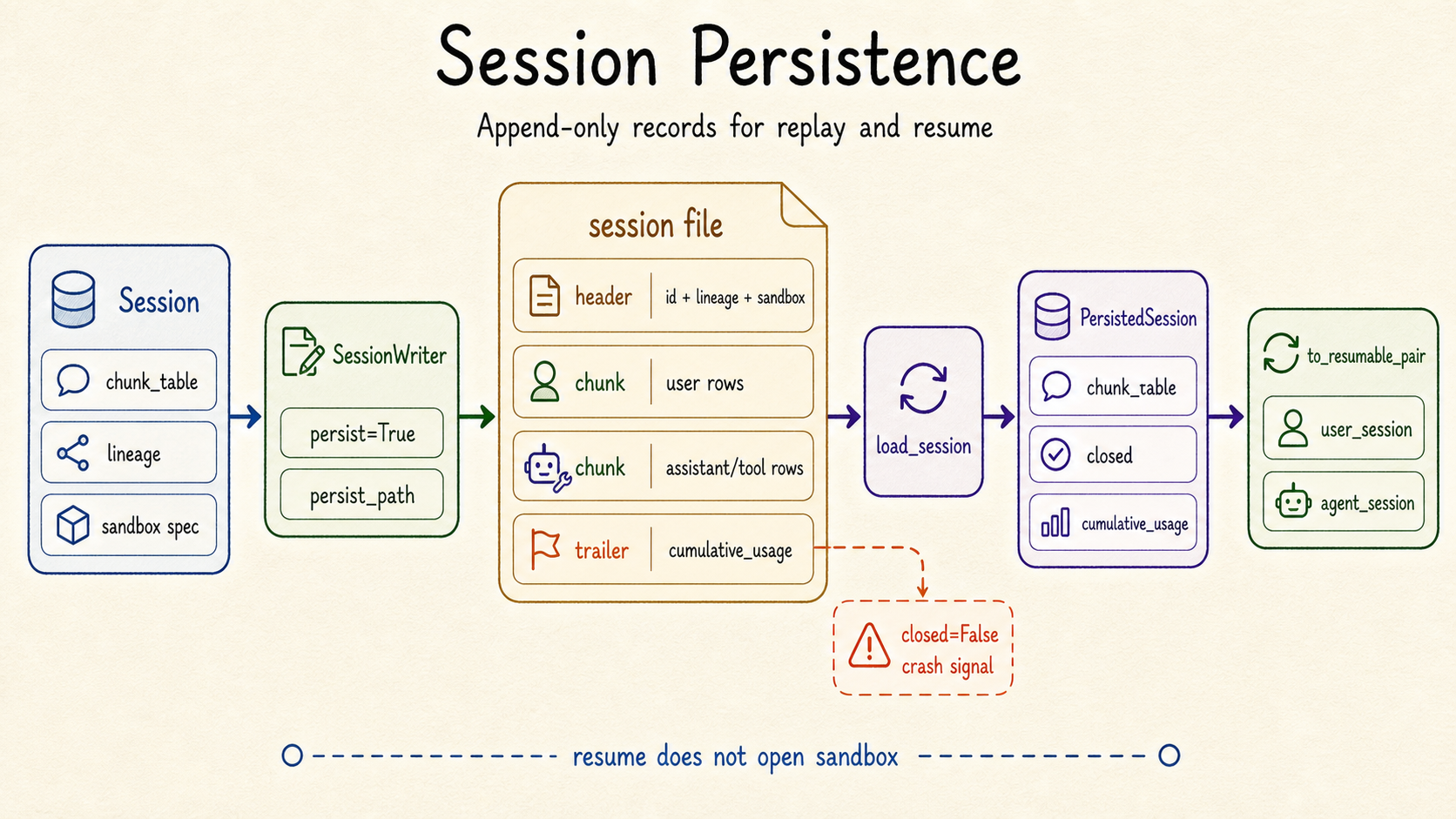

Persistence#

Async persistence also writes .__partial__ marker files beside in-flight JSONL files. The marker is removed after the trailer is committed, so startup/listing code can distinguish a clean close from a crash or interrupted async write.

API	Behavior
`SessionWriter(session, path=None, sandbox_handle_id=None)`	Opens an append-only JSONL writer and writes a header.
`load_session(id, path=None)`	Parses a persisted session JSONL file into `PersistedSession`.
`list_persisted_sessions()`	Lists header metadata and closed/crashed state for stored sessions.
`delete_session(id)`	Deletes one persisted session file.
`prune_sessions(older_than=...)`	Deletes persisted sessions older than a cutoff.
`PersistedSession.to_resumable_pair(agent_prompt=None)`	Builds `(user_session, agent_session)` for another loop call and reattaches the persisted sandbox identity when possible.

Persistence records are newline-delimited JSON:

Record	Meaning
`header`	Session id, lineage, sandbox backend/spec, optional sandbox handle id.
`chunk`	One appended chunk row. Inherited user rows are seeded before new loop output rows.
`trailer`	Graceful close marker plus final cumulative usage. Missing trailer means the process likely crashed mid-write.

Lineage export#

API	Behavior
`session_to_jsonl_row(session)`	Projects one session into a JSON-ready lineage row.
`export_jsonl_string(sessions)`	Returns JSONL for an iterable of sessions.
`export_jsonl(sessions, path)`	Writes lineage JSONL to disk.
`export_journal_jsonl(journal, path, skip_unknown=True)`	Resolves `LineageJournal.visit_order` through the registry and exports rows.

Exceptions and edge behavior#

Location	Behavior
`Session.require_sandbox()`	Raises `RuntimeError` when no backend target is set.
`Session.merge(other)`	Keeps `self.sandbox` even when `other` points at another open sandbox; raises `ValueError` only when both sessions are unbound and target different backend names.
Lazy output reads	Reading `chunk_table` or `cumulative_usage` blocks until the private async runtime has materialized pending rows.
`run_session_loop(on_event=...)`	Raises `TypeError` upfront when the resolved chat client does not implement `complete_stream(req)`.
`run_session_loop(...)`	Non-JSON tool arguments, unknown tools, and tool execution exceptions are written as JSON error `tool_result` rows.
`run_session_compress(...)`	Empty model content, tool calls, and unexpected finish reasons raise `RuntimeError`.

Autodoc#

class rath.session.Session(chunk_table: ChunkTable, *, id: UUID | None = None, sandbox: BackendSandbox | None = None, sandbox_backend: str | None = None, _sandbox_open_spec: BackendSandboxSpec | None = None, _cm_depth: int = 0, lineage: SessionLineage | None = None, parent_session_ids: tuple[UUID, ...] = (), lineage_operator: str = 'implicit', lineage_kind: LineageKind = LineageKind.UNKNOWN, lineage_extras: tuple[tuple[str, Any], ...] = (), cumulative_usage: RathLLMTokenUsage | None = None)[source]#

Chunk transcript (chunk_table), optional sandbox, and lineage metadata.

Sandbox placement is torch-like: sandbox_backend is None until you call to() (or bind_sandbox()). The handle in sandbox is opened lazily on first use (require_sandbox() or entering with session:). Every self.sandbox slot counts as one reference on the BackendSandbox instance; close_sandbox() drops it, and the backend close is called only when the reference count reaches zero. with session: is optional; when used, the outermost exit calls close_sandbox().

Lazy materialization: when a session is returned from run_session_loop(), it may carry an in-flight LazyValue in _pending. Reading chunk_table or cumulative_usage calls synchronize(), which blocks until the runtime publishes the materialized values. Lineage attributes (parent_session_ids, lineage_operator, lineage_kind, lineage_extras) are eager and never trigger synchronize.

Sharing semantics: run_session_loop(), run_session_compress(), fork(), detach(), and merge() all bind the new session to the same sandbox object as the source (refcount + 1). The source session keeps its reference. detach() differs from fork() only in lineage: fork() records parent_session_ids=(self.id,); detach() records an empty parent tuple. merge() always keeps self.sandbox (the first session’s); other.sandbox is ignored, and other keeps its own reference.

Flat lineage (preferred graph substrate): parent_session_ids (ordered parents), lineage_operator, lineage_kind, lineage_extras. lineage is an optional legacy DTO tying loop outputs to producer sessions.

property chunk_table: ChunkTable#

Materialized transcript. Blocks on _pending if still in flight.

Re-entrancy: when a tool dispatched by the runtime reads session.chunk_table from inside its own producing future, synchronize() would deadlock (the future cannot complete until the tool returns). In that case we read the in-flight _chunk_table directly — tools see the transcript as it grows.

synchronize() → Session[source]#

Block until _pending resolves; publish staged values; return self.

Idempotent — repeated calls (including from multiple threads) only materialize once. Exceptions raised by the in-flight future are re-raised here (after _pending is cleared so subsequent reads do not block again).

classmethod create(kind: str = 'user', text: str = '') → Session[source]#

Friendly single-entry constructor with lineage stamping.

kind is one of:

"user" — single USER chunk holding text; stamps LEAF_USER.
"system" — single SYSTEM chunk holding text; stamps LEAF_SYSTEM.
"empty" — zero-row transcript; text is ignored; no lineage stamp.

The returned session is unbound (no sandbox). Chain .to(backend) to pick a backend; the handle opens lazily on first use or with session:.

to(backend: str = 'local', *, spec: BackendSandboxSpec | str | None = None) → Session[source]#: Close any current handle, set target backend, and return self (chainable).

close_sandbox() → Session[source]#: Drop this session’s sandbox reference; close when refcount hits zero.

bind_sandbox(sandbox: BackendSandbox) → Session[source]#: Take a reference to sandbox (refcount + 1); release the previous one.

fork() → Session[source]#: Duplicate transcript; share the same sandbox reference (refcount + 1).

detach() → Session[source]#: Duplicate transcript with a fresh lineage root; share the sandbox reference.

merge(other: Session) → Session[source]#

Concatenate self.rows + other.rows into a new session.

The merged session always keeps self.sandbox — the first session’s. other.sandbox is ignored regardless of whether it is the same instance, a different one, or None; other keeps its own reference. Refcount on self.sandbox is bumped by 1 when set. cumulative_usage is summed across both inputs. Lineage parents are (self.id, other.id), kind is LineageKind.OP_MERGE.

The only remaining hard constraint: when both sessions are unbound and they declare different sandbox_backend targets, merging is ambiguous — raises ValueError.

class rath.session.ChunkRow(kind: ChunkKind, payload: dict[str, Any])[source]#: Immutable row in chronological order.

class rath.session.ChunkTable(rows: tuple[ChunkRow, ...] = ())[source]#: Append-only chronological chunk list.

rath.session.run_session_loop(user_session: Session, agent_session: Session, *, agent_provider: Provider, tools: list[FlowToolCall] | None = None, executor: SessionLoopExecutor | None = None, max_tool_rounds: int = 64, on_event: Callable[[RathLLMStreamDelta], None] | None = None, persist: bool = False, persist_path: Path | None = None, sandbox_handle_id: str | None = None, lazy: bool = True) → Session[source]#

Run one multi-turn assistant pass with optional tool rounds.

Built-in tools come from global_system_tools(); pass instantiated FlowToolCall objects in tools to add or override. Shadowing built-in names is disallowed.

Shares the BackendSandbox from user_session with the returned session (refcount + 1); the user session keeps its reference and either side can Session.close_sandbox() independently. LLM routing kwargs come from agent_provider; completions and tool dispatch go through executor (a fresh DefaultSessionLoopExecutor is built when omitted).

When on_event is provided, completions stream — the resolved client must satisfy StreamingChatClient, otherwise a TypeError is raised before any session is registered. Each RathLLMStreamDelta is forwarded to on_event; chunks are still appended atomically (one accumulated assistant message per round).

When persist is true or persist_path is given, every appended row is written to .openrath/sessions/<out.id>.jsonl (or to persist_path). On graceful return the trailer is written; on exception the file is abandoned without a trailer.

Message assembly concatenates agent_session.chunk_table ahead of the user rows for the LLM; head rows stay out of out.chunk_table.

When lazy=True (the default), the returned Session is a lazy handle: lineage attributes, id, and sandbox are set immediately, but the transcript materialises only when the caller reads out.chunk_table (or calls out.synchronize()). The runtime executes the loop on a background asyncio loop so multiple run_session_loop calls can overlap.

class rath.session.SessionLoopExecutor(*args, **kwargs)[source]#

Runs completions and tool dispatch used by run_session_loop.

complete(req: RathLLMChatRequest) → RathLLMChatResponse[source]#: Run one chat completion.

dispatch_tool(session: Session, tool: FlowToolCall, arguments: Mapping[str, Any]) → Any[source]#: Run tool with JSON arguments (typically tool(session, arguments)).

tool_schemas() → tuple[RathLLMFunctionTool, ...][source]#: Tool specs for OpenAI-style tools. Empty tuple defers to the loop-local merged registry.

class rath.session.loop.StreamingExecutor(client: StreamingChatClient, on_event: Callable[[RathLLMStreamDelta], None], inner: SessionLoopExecutor | None = None)[source]#

Adapt a StreamingChatClient to the SessionLoopExecutor protocol.

complete() consumes the client’s complete_stream(req), forwards each delta to on_event, and returns the accumulated response. Tool dispatch and schema lookup are delegated to an inner executor (a fresh DefaultSessionLoopExecutor wrapping the same client when one is not supplied).

rath.session.run_session_compress(user_session: Session, agent_session: Session, *, agent_provider: Provider, executor: SessionLoopExecutor | None = None, compress_instruction: str | None = None, register_sessions: bool = True, on_event: Callable[[RathLLMStreamDelta], None] | None = None, persist: bool = False, persist_path: Path | None = None, sandbox_handle_id: str | None = None) → Session[source]#

Summarize transcript via LLM into a new user-only session (no SYSTEM chunks).

agent_session and user_session chunks are folded into the completion request only — they are not copied into out.chunk_table. The returned session contains a single USER row built from the model reply.

Completions use tools=None and tool_choice=none. If the model returns tool calls, raises RuntimeError.

When executor is None, a default executor is built from agent_provider; it must carry a non-empty api_key.

Shares the BackendSandbox from user_session with the returned session (refcount + 1) when one is bound; the user session keeps its reference.

When on_event is provided, the completion streams — the resolved client must satisfy StreamingChatClient. Each RathLLMStreamDelta is forwarded to on_event.

When persist is true or persist_path is given, the single output row is written to .openrath/sessions/<out.id>.jsonl (or to persist_path) with a trailer.

rath.session.create_user_session(message: str) → Session[source]#: Leaf user transcript; stamps LEAF_USER when lineage mode is on.

rath.session.create_system_session(prompt: str) → Session[source]#: Leaf system transcript; stamps LEAF_SYSTEM when lineage mode is on.

rath.session.fork_session(from_session: Session) → Session[source]#: Same as fork().

rath.session.detach_session(from_session: Session) → Session[source]#: Same as detach().

class rath.session.SessionWriter(session: Session, *, sandbox_handle_id: str | None = None, path: Path | None = None)[source]#

Append-only JSONL WAL writer for one Session.

Usage:

writer = SessionWriter(session)        # opens <id>.jsonl.__partial__,
                                       # writes header immediately
writer.write_chunk(0, row_0)
writer.write_chunk(1, row_1)
...
writer.close()                          # writes trailer, renames to
                                        # <id>.jsonl atomically

The writer can also be used as a context manager — __exit__ calls close() when no exception is in flight and abandon() otherwise (so a crash midway leaves the __partial__ file behind, marking the session as closed=False on reload).

property path: Path#

Absolute path to the on-disk JSONL file after close().

Note this is the final path. While the writer is still in-flight the file lives at partial_path; readers that want to look at an in-flight session should use that attribute instead.

property partial_path: Path#: Absolute path to the in-flight .__partial__ file.

property chunks_written: int#: Number of record_type=chunk lines flushed so far.

write_chunk(index: int, row: ChunkRow) → None[source]#: Append one chunk record.

close() → None[source]#

Write the trailer and atomically rename __partial__ → final.

Idempotent.

abandon() → None[source]#

Release the file handle WITHOUT writing a trailer or renaming.

Leaves the __partial__ file in place — a visible signal that the writing process crashed mid-session or that the runtime drain timed out. The loader still tolerates this file via load_session().

rath.session.load_session(session_id: UUID | str, *, path: Path | None = None) → PersistedSession[source]#

Parse one session JSONL into a PersistedSession.

Pass session_id to look up under the resolved sessions directory, or path to read an explicit file (mainly for tests). The two are mutually exclusive — when both are given, path wins.

Raises PersistenceError for malformed JSON, missing header, or schema-version mismatches. A trailing unterminated line is treated as a crashed-mid-write line and silently skipped; the returned PersistedSession.closed field will be False because no trailer record was observed.

rath.session.list_persisted_sessions() → list[PersistedSessionMeta][source]#

Enumerate persisted sessions in the resolved sessions directory.

Sorted by created_at ascending (oldest first). Files that fail to parse are skipped with a logged warning rather than aborting the whole listing.

rath.session.delete_session(session_id: UUID | str, *, path: Path | None = None) → bool[source]#

Remove the on-disk JSONL file for session_id.

Returns True when the file existed and was removed, False when it was already absent. Does not touch any associated sandbox dir — pair with PersistentSandboxRegistry.delete_local() when removing the sandbox is also desired.

rath.session.prune_sessions(*, older_than: timedelta) → list[UUID][source]#

Delete persisted sessions whose created_at is older than older_than.

Returns the removed session ids in deletion order. Files that fail to parse are skipped (and not pruned — manual cleanup is safer than auto- delete in that case).

class rath.session.PersistedSession(*, header: PersistedSessionHeader, chunk_table: ChunkTable, cumulative_usage: RathLLMTokenUsage | None, closed: bool, path: Path, trailer_raw: dict[str, Any] | None = None)[source]#

Full round-trip view of one persisted session file.

to_resumable_pair(*, agent_prompt: str | None = None) → tuple[Session, Session][source]#

Build (user_session, agent_session) ready for run_session_loop.

The user session inherits the persisted chunk_table verbatim (so the loop sees the same transcript). The agent session carries the system prompt (if any) extracted from the persisted history, or agent_prompt if provided to override.

Sandbox handling depends on the recorded backend:

opensandbox with a sandbox_handle_id — reattach immediately via PersistentSandboxRegistry.reattach_remote() so the resumed session targets the same remote container instead of spinning up a fresh one. Performs I/O against the registry index file and the OpenSandbox backend’s attach.
Local (or no recorded handle) — keep the spec on the unbound session; the next consumer opens lazily.

class rath.session.PersistedSessionHeader(*, schema_version: int, id: UUID, created_at: datetime, parent_session_ids: tuple[UUID, ...], lineage_operator: str, lineage_kind: LineageKind, lineage_extras: tuple[tuple[str, Any], ...], sandbox_backend: str | None, sandbox_spec: BackendSandboxSpec | None, sandbox_handle_id: str | None)[source]#: The record_type=header line, decoded.

class rath.session.PersistedSessionMeta(*, id: UUID, path: Path, created_at: datetime, lineage_operator: str, lineage_kind: LineageKind, chunk_count: int, closed: bool)[source]#

Lightweight summary used by list_persisted_sessions().

Reading meta is cheap: only the header (line 1) is parsed, the rest of the file is scanned only to count chunks and detect a trailer.

exception rath.session.PersistenceError[source]#

Raised when a persisted session file is corrupt or unreadable.

The string carries a human-readable summary including the file path and, where available, the byte offset / line number of the failure. The original json.JSONDecodeError or OSError is chained via __cause__.

rath.session.graph.export.session_to_jsonl_row(session: Session) → dict[str, Any][source]#: Project a Session into a JSONable dict for one JSONL row.

rath.session.graph.export.export_jsonl_string(sessions: Iterable[Session]) → str[source]#: Return the JSONL text for sessions (one line per session, \n-terminated).

rath.session.graph.export.export_jsonl(sessions: Iterable[Session], path: str | Path) → None[source]#: Write JSONL for sessions to path (UTF-8, \n line endings).

rath.session.graph.export.export_journal_jsonl(journal: LineageJournal, path: str | Path, *, skip_unknown: bool = True) → None[source]#

Resolve journal.visit_order through the session registry, then export.

Sessions that are not in the global registry are silently skipped when skip_unknown is true (the default - this matches the typical use case where the journal outlives some sessions). Set skip_unknown=False to raise KeyError instead.

← API Reference

rath.session#
