Workflow

Workflow is OpenRath’s composition layer. It organizes one or more agent configurations into a callable object and expresses runtime logic as Session -> Session.

This page explains the structure from single-agent to multi-agent workflows, AgentParam registration rules, nested workflow composition, and how session, sandbox, and tool traces move through the call chain.

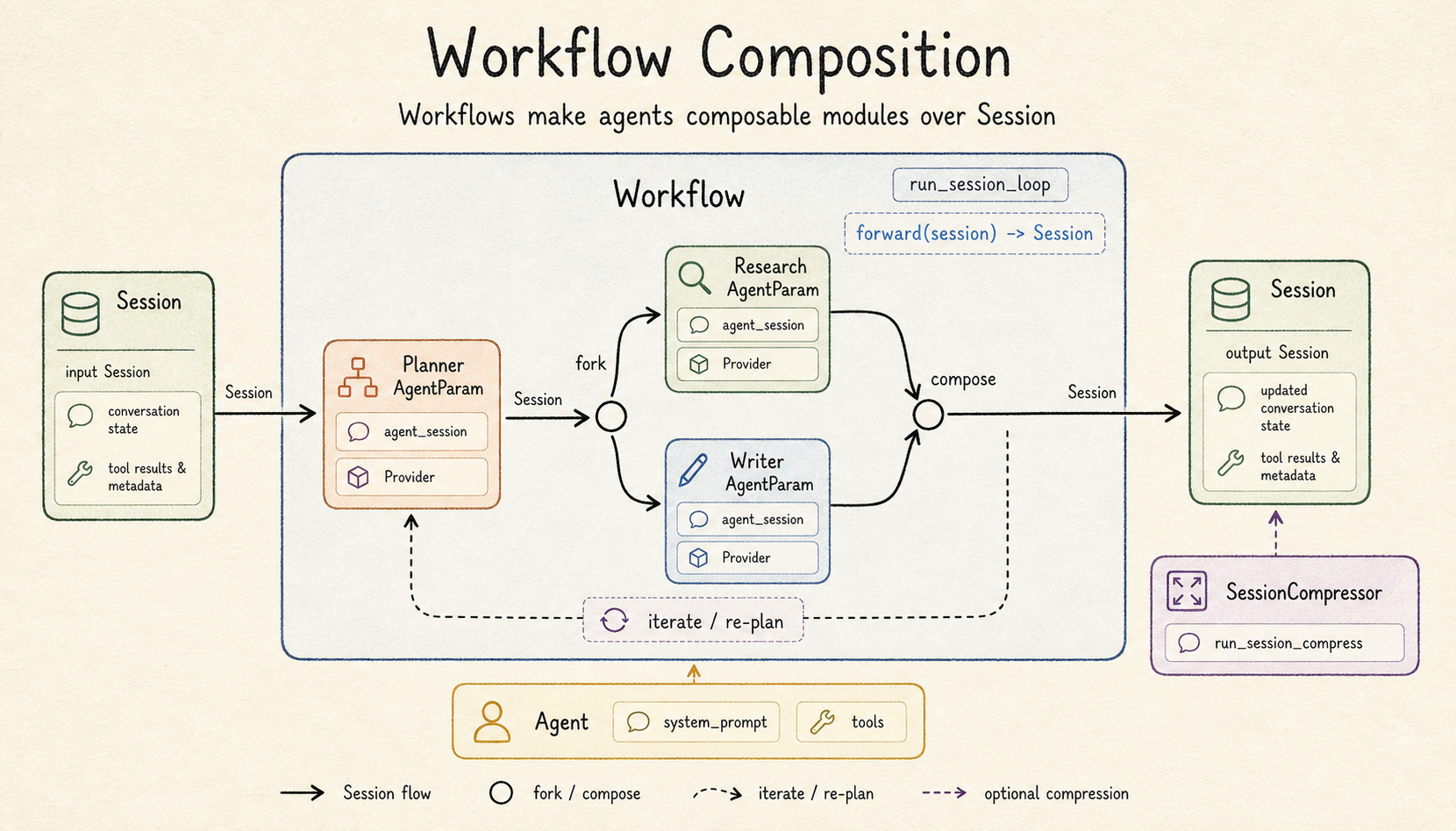

The diagram below shows the intended mental model: a workflow is a callable module over Session, and its internal agents can fork, compose, and compress state explicitly.

Workflow.forward(session) -> Session keeps orchestration in ordinary Python while preserving session graph and sandbox traceability.

Overview

OpenRath workflows follow a pattern close to PyTorch modules:

PyTorch intuition	OpenRath equivalent
Module.forward(x) defines computation	Workflow.forward(session) defines agent orchestration
Child modules are attached as attributes	AgentParam is registered by attribute assignment
Tensors move between modules	Session moves between agents and workflows
Module tree can be printed	repr(workflow) prints registered agents

Workflow has a small job: collect directly attached AgentParam values, provide the forward(...) convention, and make instances callable through workflow(session). Execution order, branching, compression, tool injection, and child workflow calls are written explicitly in normal Python code.

Source map

File	Responsibility
src/rath/flow/workflow.py	Workflow base class, attribute registration, named_agents(), repr.
src/rath/flow/agent_param.py	AgentParam values that can be registered by a workflow.
src/rath/flow/agent.py	Agent preset workflow wrapping one agent loop.
src/rath/flow/compressor.py	Compressor preset workflow wrapping compression.
src/rath/session/loop.py	Runs the LLM loop, tool calls, sandbox transfer, and lineage writeback.
example/01_hello_agent.py	Smallest preset flow.Agent workflow.
example/08_compress.py	Preset flow.Compressor workflow.

Minimal Workflow

Inherit from Workflow and implement forward(self, session) -> Session:

from rath.flow import Workflow
from rath.session import Session


class IdentityWorkflow(Workflow):
    def forward(self, session: Session) -> Session:
        return session

Workflow.__call__(session) directly calls forward(session). The base forward(...) raises NotImplementedError, so subclasses must define their own runtime logic.

AgentParam Auto-Registration

When an AgentParam is assigned as a workflow attribute, Workflow.__setattr__ records it in _agents:

from rath.flow import AgentParam, Provider, Workflow
from rath.session import Session


class PlanningWorkflow(Workflow):
    def __init__(self):
        super().__init__()
        self.planner = AgentParam(
            Session.from_agent_prompt("Plan the work."),
            Provider(api_key="sk-...", model="gpt-5.5"),
        )

That assignment has two effects:

Result	Behavior
Python attribute	Usable through self.planner.
workflow registry	Visible through named_agents() and repr(workflow).

named_agents() returns a tuple sorted by attribute name. When an attribute is deleted, Workflow.__delattr__ removes the matching registered item from _agents.

Single-Agent To Multi-Agent

The smallest runnable path can use the preset flow.Agent directly:

from rath import flow
from rath.llm import Provider

agent = flow.Agent(
    system_prompt="Answer clearly.",
    provider=Provider(api_key="sk-...", model="gpt-5.5"),
)

out = agent(user_session)

For multiple roles, define each role as an AgentParam and call run_session_loop(...) step by step in forward(...):

from rath.flow import AgentParam, Provider, Workflow
from rath.session import Session, run_session_loop


class ReviewWorkflow(Workflow):
    def __init__(self, provider: Provider):
        super().__init__()
        self.writer = AgentParam(
            Session.from_agent_prompt("Write a first draft."),
            provider,
        )
        self.reviewer = AgentParam(
            Session.from_agent_prompt("Review the draft and tighten it."),
            provider,
        )

    def forward(self, session: Session) -> Session:
        draft = run_session_loop(
            session,
            self.writer.agent_session,
            agent_provider=self.writer.provider,
        )
        return run_session_loop(
            draft,
            self.reviewer.agent_session,
            agent_provider=self.reviewer.provider,
        )

The first loop output becomes the second loop input. The session graph records the parents for each loop, and the sandbox handle moves from input session to output session.

Session Is The Composition Unit

Workflow instances communicate through Session. That keeps several composition patterns consistent:

Pattern	Code shape	Use case
Sequential call	s = step_a(s); s = step_b(s)	Roles work in a fixed order.
Branching exploration	left = s.fork(); right = s.fork()	Derive multiple candidate paths from the same context.
Session-level parallelism	left = pool.submit(...); right = pool.submit(...)	Send multiple forked sessions to different agents at the same time.
Detach from history	clean = s.detach()	Reuse content while cutting lineage.
Compress context	compressor(s)	Shorten history before the next stage.
Nested workflow	s = self.child.forward(s)	Split complex flows into smaller modules.

All of these operations still revolve around the session graph. fork(), detach(), run_session_loop(...), and run_session_compress(...) write lineage to output sessions; tool results remain as chunks in the session table; sandbox lifecycle is owned and transferred by the session.

Session-Level Parallelism

OpenRath multi-agent parallelism is based on session branches, not a special scheduling DSL. After an upstream agent produces a session, use fork() to derive branches, then use normal Python concurrency tools to send those branches to different agents.

from concurrent.futures import ThreadPoolExecutor
from rath.session import ChunkKind, Session


def forward(self, session: Session) -> Session:
    analysed = run_session_loop(
        session,
        self.analyst.agent_session,
        agent_provider=self.analyst.provider,
        tools=[market_tool],
    )

    bear_input = analysed.fork()
    bull_input = analysed.fork()

    with ThreadPoolExecutor(max_workers=2) as pool:
        bear_future = pool.submit(
            run_session_loop,
            bear_input,
            self.researcher_bear.agent_session,
            agent_provider=self.researcher_bear.provider,
            tools=None,
        )
        bull_future = pool.submit(
            run_session_loop,
            bull_input,
            self.researcher_bull.agent_session,
            agent_provider=self.researcher_bull.provider,
            tools=None,
        )
        bear_session = bear_future.result()
        bull_session = bull_future.result()

    def last_assistant_text(s: Session) -> str:
        for row in reversed(s.chunk_table.rows):
            if row.kind == ChunkKind.ASSISTANT and row.payload.get("content"):
                return str(row.payload["content"])
        return ""

    trader_input = Session.from_user_message(
        "Combine the two research branches.\n\n"
        f"Bear branch:\n{last_assistant_text(bear_session)}\n\n"
        f"Bull branch:\n{last_assistant_text(bull_session)}"
    ).to("local")

    return run_session_loop(
        trader_input,
        self.trader.agent_session,
        agent_provider=self.trader.provider,
        tools=None,
    )

This pattern has three boundaries:

Boundary	Notes
lineage	Both forked sessions keep the same parent, and later loop outputs record their own agent parent.
sandbox	If the source has an open sandbox, fork() shares that handle by reference count. If no handle is open, branches inherit the backend target and open lazily.
aggregation	Session.merge(other) concatenates rows and keeps the left-hand sandbox; workflows may still choose to summarize branch outputs into a new user message. The example above builds the next input from the last assistant text in each branch.

OpenRath’s parallel unit is therefore the session. Tool stream concurrency belongs to the backend layer, and Provider.parallel_tool_calls belongs to LLM tool-call parameters; both are separate from session-level parallelism.

If branches write to the workspace, assign different directories explicitly. When the source has an open sandbox, forked branches share the same handle; when it only has spec=".", both branches still target the same host directory on lazy open. A safer pattern is to reset a branch-specific workspace after fork:

auth_input = session.fork().to("local", spec=".workspace/auth-branch")
data_input = session.fork().to("local", spec=".workspace/data-branch")

OpenSandbox follows the same rule: retarget a branch before tool execution if it needs an independent container or host bind path.

Preset Workflows

OpenRath currently provides two preset subclasses:

Class	Wraps	Best for
Agent	One AgentParam, one tools list, one run_session_loop(...)	Single-agent calls and quick tool integration.
Compressor	One AgentParam, one run_session_compress(...)	Compressing a long session into a new user-side session.

Agent.register_tool(...) deduplicates by tool name. Compressor asks the model to produce a new user message; the compressed result keeps session lineage and continues to hold the input session’s sandbox configuration and handle.

Nested Workflow

A nested workflow is still ordinary Python composition:

class EngineeringProjectWorkflow(Workflow):
    def __init__(self, provider: Provider) -> None:
        super().__init__()
        self.lead = AgentParam(Session.from_agent_prompt(LEAD_ENGINEER_SYSTEM), provider)
        self._squad = FeatureSquadWorkflow(provider)
        self._qa = QualityAssuranceWorkflow(provider)

    def forward(self, session: Session) -> Session:
        s = run_session_loop(
            session,
            self.lead.agent_session,
            agent_provider=self.lead.provider,
            tools=None,
        )
        s = self._squad.forward(s)
        return self._qa.forward(s)

The current base class registers only directly assigned AgentParam values. self._squad and self._qa are normal Python attributes, and forward(...) calls them explicitly. The outer workflow’s repr(...) shows only directly registered agents; nested composition is visible through source structure and the call path.

Sequential Multi-Agent Pattern

A fixed-order multi-role flow usually looks like:

analyst
  researcher_bear
  researcher_bull
  trader
  risk_pm

The first stage may inject a domain tool; later stages read the tool result and assistant content already stored in the session. External tools can be given to a single role, and their results pass to later roles through the session.

Public examples require users to set their own API keys explicitly so a default key is not mistaken for a product capability.

Hierarchical Composition Pattern

Hierarchical composition keeps parent and child workflows explicit:

Level	Workflow	Execution
L1	EngineeringProjectWorkflow	lead plan -> feature squad -> QA.
L2	FeatureSquadWorkflow	architect -> backend pair -> frontend.
L3	BackendPairWorkflow	backend auth -> backend data.
QA	QualityAssuranceWorkflow	Tests and risk checks based on the full session.

The example shows how to organize complex engineering work: each workflow owns its local sequence, the parent workflow chains child workflows, and all stages share the same session-passing chain.

Tool And Sandbox Boundaries

Inside a workflow, tools and sandbox still take effect through run_session_loop(...):

Item	Where it happens
Tool list merge	At the start of each run_session_loop(...).
Tool call record	Written to the output session as a tool_result chunk.
sandbox handle	Shared from the input session via bind_sandbox (refcount + 1); the input keeps its reference.
sandbox backend spec	Stored on the output session.
lineage	Output session records both the user session and agent session as parents.

A workflow can therefore give different roles different tools; the same sandbox can move through multiple roles with the session; later agents can see results produced by earlier tools.

Call Path

workflow(session)
  Workflow.__call__
  subclass.forward(session)
  run_session_loop or child workflow
  returned Session carries new chunks, sandbox, lineage

When using the preset Agent:

flow.Agent.forward(session)
  run_session_loop(
    user_session=session,
    agent_session=self.agent.agent_session,
    agent_provider=self.agent.provider,
    tools=self.tools,
  )

When using the preset Compressor:

flow.Compressor.forward(session)
  run_session_compress(
    user_session=session,
    agent_session=self.agent.agent_session,
    agent_provider=self.agent.provider,
  )

Current Boundaries

Behavior	Current implementation
attribute registration	Only attributes assigned to AgentParam values enter _agents.
deletion	__delattr__ removes the same-named agent from _agents.
ordering	named_agents() sorts by attribute name.
base execution	Workflow.forward(...) raises NotImplementedError.
nested workflow	The base class does not automatically register child workflows.
async support	Workflow.forward(...) is currently synchronous.
scheduling policy	Ordering, branching, retries, and concurrency are expressed by the user in Python code.

Code Reading Checkpoints

1. In workflow.py, check __slots__ = ("_agents",) and __setattr__.

2. In workflow.py, check the sorting rule in named_agents().

3. In agent.py, check how Agent.forward(...) calls run_session_loop(...).

4. In compressor.py, check how the compression workflow calls run_session_compress(...).

5. In example/01_hello_agent.py, check the preset flow.Agent path.

6. In example/08_compress.py, check the preset compression path.

7. In tests/flow/test_workflow_agent.py, check workflow registration and sandbox transfer tests.

Test Coverage

Behavior	Tests
workflow registration and agent call	tests/flow/test_workflow_agent.py
import contract	tests/test_import.py
session compressor live behavior	tests/integration/test_session_compress_real.py

Related Pages

Page	Covers
AgentParam	Agent-side session, provider, and request assembly.
01 Hello Agent	Smallest preset flow.Agent path.
08 Compress	Preset compression workflow.
